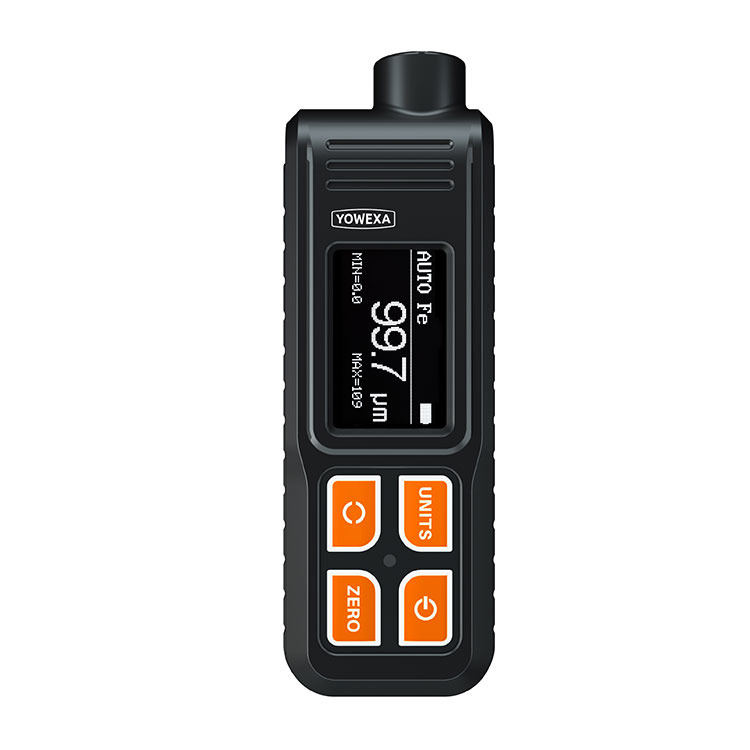

EC-370X Low Temperature Resistant Coating Check Car Paint Thickness Gauge
| Model | EC-370 | EC-370X |
| Probe type | Internal | |
| Measuring principle | Fe: Magnetic induction; NFe: eddy currents | |
| Measuring range | 0~2000μm | |
| Accuracy | ±(3%+1μm) | ±(3%+2μm) |
| Resolution | 0.1μm(0~100μm); 1μm(>100μm) | |
| Unit | μm, mm, mil | |
| Galvanized iron identification range | 3~500μm | |
| User calibration method | Zero calibration | |
| Statistics | Maximum, minimum, average, number of measured values | |
| USB data transfer | Supported | |
| Storage capacity | 200 measurement data | |
| Probe triggering force | 0.5~1.2N | |
| The minimum radius of curvature of the substrate | Convex surface 5mm; Concave surface 25mm | |
| Minimum measuring area | 15mm in diameter | |
| Minimum thickness of substrate | Fe: 0.30mm; NFe: 0.05mm | |
| Maximum measuring speed | 2 readings/sec | |
| Display | Dot-matrix LCD screen | Dot-matrix OLED screen |
| Operating environment | -10~50℃ | -40~50℃ |
| Storage environment | -20~60℃ | -50~60℃ |
| Power supply | 2 pcs AAA 1.5V alkaline batteries; 2 pcs AAA 1.2V rechargeable batteries | |
| Protection class | IP40 | |
| Size | 134*44*27mm | |
| Case material | ABS | |
| Weight | About 71g (without batteries) | |
EC-370X uses OLED display. Under the condition of using low temperature resistant battery, its limit working temperature can reach -50℃.
Features:
• Ruby Probe
• Data statistics and viewing
• Support continuous measurement
• Zero calibration function
• Recognition of iron-galvanized substrate
• Response time is less than 0.5 seconds
• Indicator light
• Manually rotate the screen
• A variety of shell colors are available
• Automatic shut-down
• Battery protection
YOWEXA, established in 2010, is a high-tech enterprise with 3 holding subsidiaries and a production area of 1,500 square meters, focusing on the R&D, manufacturing, sales, and solutions of precision measuring instruments and sensors. There are more than 30 R&D personnel and dozens of independent intellectual property rights.
Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our clients.
Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.
Q. What is your terms of payment?
A. 100% for small orders. Bulk orders 30% in advance as deposit and 70% balance before the delivery.
Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.
